ARCHIPEL 17 ICP

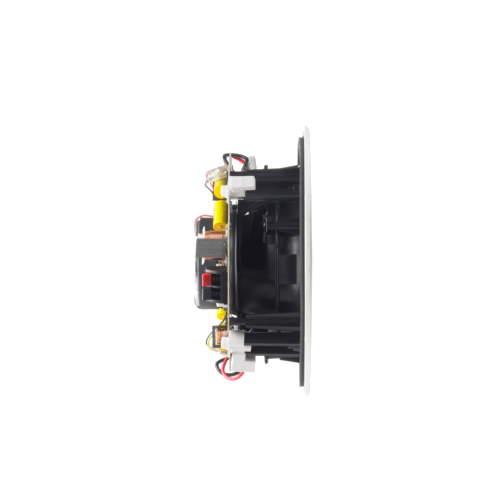

The Archipel 17 ICPS is a loudspeaker that fits in the ceiling or in a wall. This coaxial loudspeaker is fitted with 2 x DOM24 pivoting soft dome Tweeters and 1 x 17T20 IC P2C midrange-woofder. Furthermore, the white finish grill is also paintable.

The Archipel range of loudspeakers is designed for perfect integration in ceilings and walls, with no performance compromises. Developed with the same passion that goes into the technical and acoustic design of all Cabasse loudspeakers, the range offers the same presence, high fidelity sound reproduction and user benefits that are to be found in all the company’s products.

170

ARCHIPEL 17 ICP

The Archipel 17 ICPS is a loudspeaker that fits in the ceiling or in a wall. This coaxial loudspeaker is fitted with 2 x DOM24 pivoting soft dome Tweeters and 1 x 17T20 IC P2C midrange-woofder. Furthermore, the white finish grill is also paintable.

The Archipel range of loudspeakers is designed for perfect integration in ceilings and walls, with no performance compromises. Developed with the same passion that goes into the technical and acoustic design of all Cabasse loudspeakers, the range offers the same presence, high fidelity sound reproduction and user benefits that are to be found in all the company’s products.

170

Recessed music

Designed for aesthetic integration in ceilings and walls without technical compromise, the Archipel models offer the same presence and fidelity in sound reproduction as all other models of the brand.

FEATURES AND SPECIFICATIONS

TECHNICAL SPECIFICATIONS

Ways

2 x 2

drivers

1 x medium-serious 17T20 IC P2C membrane, 2 x tweeter adjustable DOM24 membrane dome

Cross over point

3 200 Hz

Frequency response

40 – 19 000 Hz

Sensitivity 1W / 1m

84 dB

Nominal impedance

8 Ω

Minimal impedance

6,4 Ω

Power handling

2 x 20 W

Peak power

2 x 160 W

USE

Inside / Outside

DIMENSIONS

Dimensions

24 x 24 x 9.7 cm

Weight

1.3 kg
