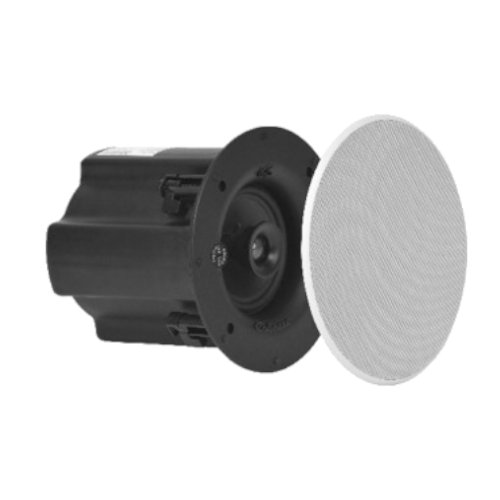

ARCHIPEL 13 ICP TR integrated speaker

The Archipel 13 ICP TR is a loudspeaker that fits in the ceiling or in a wall. It’s equipped with a coaxial loudspeaker consisting of a pivoting DOM24 tweeter and a 13 cm 13T15 IC midrange woofer.

The Archipel range of loudspeakers is designed for perfect integration in ceilings and walls, with no performance compromises. Developed with the same passion that goes into the technical and acoustic design of all Cabasse loudspeakers, the range offers the same presence, high fidelity sound reproduction and user benefits that are to be found in all the company’s products.

209

ARCHIPEL 13 ICP TR integrated speaker

The Archipel 13 ICP TR is a loudspeaker that fits in the ceiling or in a wall. It’s equipped with a coaxial loudspeaker consisting of a pivoting DOM24 tweeter and a 13 cm 13T15 IC midrange woofer.

The Archipel range of loudspeakers is designed for perfect integration in ceilings and walls, with no performance compromises. Developed with the same passion that goes into the technical and acoustic design of all Cabasse loudspeakers, the range offers the same presence, high fidelity sound reproduction and user benefits that are to be found in all the company’s products.

209

Recessed Music

Designed for aesthetic integration in ceilings and walls without technical compromise, the Archipel models offer the same presence and fidelity in sound reproduction as all other models of the brand.

FEATURES AND SPECIFICATIONS

SOUND

Ways

2

Drivers

1 x DOM24 pivoting tweeter soft dome

1 x midrange woofe 13T15 IC Duocell diaphragm P2C

Cross over point

3550 Hz

Frequency response

80 – 21500 Hz

Sensitivity 1W / 1m

84.5 dB

Nominal impedance

8 ohms

Minimum impedance

8.5 ohms

Power handling

15W / 70  -100 V

Peak power

100 W /70-100 V

USE

In ceiling/in wall

DIMENSIONS

Dimensions

24 x 24 x 22.4 cm

Weight

3.3 kg
