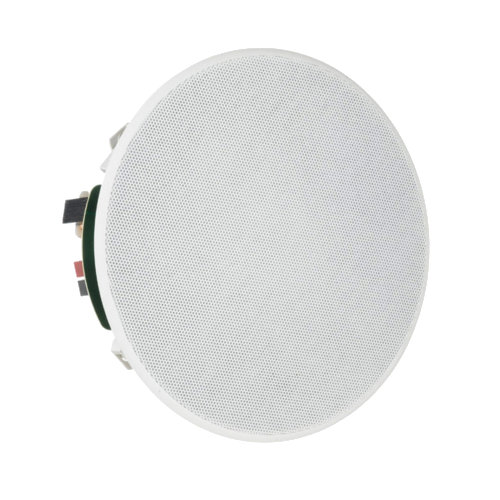

ARCHIPEL 17 ICD

The Archipel 17 ICD is a loudspeaker that fits in the ceiling or in a wall. It’s equipped with a coaxial loudspeaker that consists of a DOM25 Kaladex® adjustable Tweeter and a 17M20 Duocell IC midrange-woofer .

The Archipel range of loudspeakers is designed for perfect integration in ceilings and walls, with no performance compromises. Developed with the same passion that goes into the technical and acoustic design of all Cabasse loudspeakers, the range offers the same presence, high fidelity sound reproduction and user benefits that are to be found in all the company’s products.

190

ARCHIPEL 17 ICD

The Archipel 17 ICD is a loudspeaker that fits in the ceiling or in a wall. It’s equipped with a coaxial loudspeaker that consists of a DOM25 Kaladex® adjustable Tweeter and a 17M20 Duocell IC midrange-woofer .

The Archipel range of loudspeakers is designed for perfect integration in ceilings and walls, with no performance compromises. Developed with the same passion that goes into the technical and acoustic design of all Cabasse loudspeakers, the range offers the same presence, high fidelity sound reproduction and user benefits that are to be found in all the company’s products.

190

Recessed music

Designed for aesthetic integration in ceilings and walls without technical compromise, the Archipel models offer the same presence and fidelity in sound reproduction as all other models of the brand.

FEATURES AND SPECIFICATIONS

SOUND

Ways

2

Drivers

1 x Medium-Bass 17M20 Duocell Diaphragm IC, 1 x DOM25 Kaladex® Adjustable Tweeter

Cross over point

2 600 Hz

Frequency response

58 Hz – 22 000 Hz

Sensitivity 1W / 1m

87,5 dB

Nominal impedance

8 Ω

Minimal impedance

7,2 Ω

Power handling

40 W

Peak power

320 W

USE

In ceiling/ In wall

DIMENSIONS

Dimensions

24 x 24 x 10,2 cm

Weight

1,6 kg
