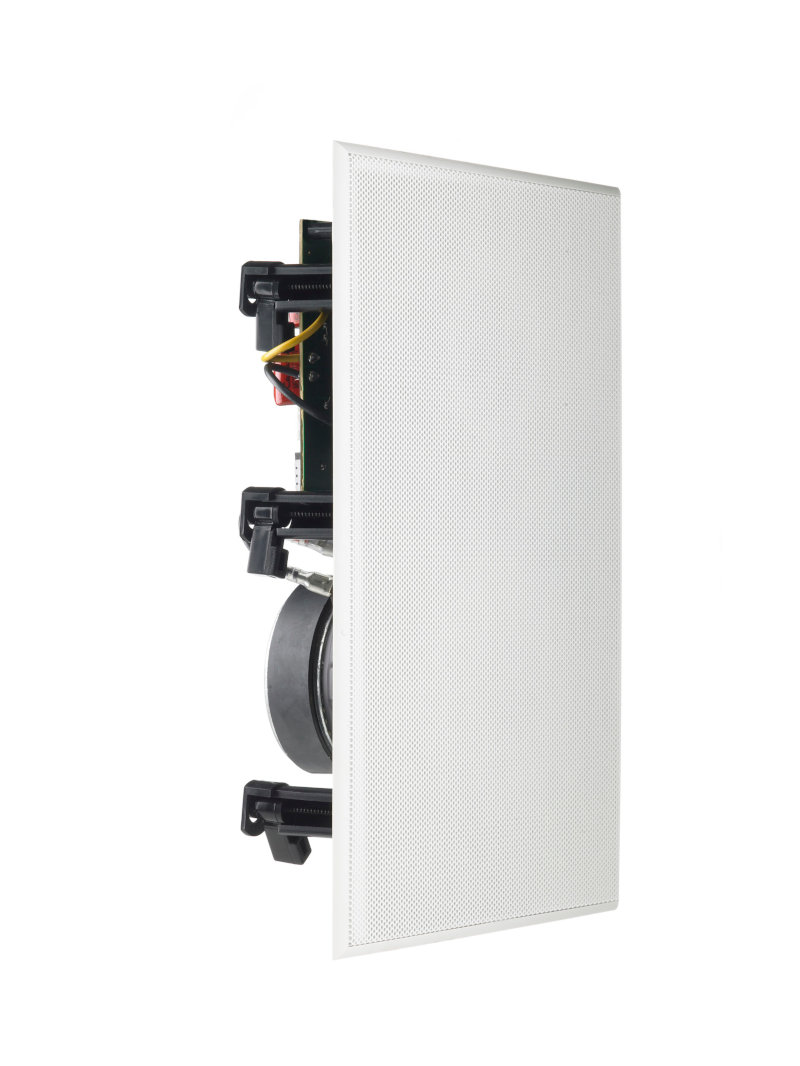

MINORCA MC IW In-wall speaker

Fitted with the coaxial BC10 midrange-tweeter and a new Duocell based 17cm woofer, Minorca MC IW (In-wall) is the first three-way in-wall speaker that combines all the sound qualities of the Cabasse SCS (Spatially Coherent Source) technology.

359

MINORCA MC IW In-wall speaker

Fitted with the coaxial BC10 midrange-tweeter and a new Duocell based 17cm woofer, Minorca MC IW (In-wall) is the first three-way in-wall speaker that combines all the sound qualities of the Cabasse SCS (Spatially Coherent Source) technology.

359

PRECISION AND REALISM IN RECESSED FORMAT

The transparency and the realism of the soundstage are simply striking, with a unique stability a depth. Its ultra-thin grill with magnetic link enables easy and aesthetic integration.

FEATURES AND SPECIFICATIONS

TECHNICAL SPECIFICATIONS

Ways

3

Speakers

1 x BC10 coaxial: – 27 mm tweeter / Peek® membrane – 100 mm medium / P2C membrane 1 x 17M20 IW / Duocell membrane

Filter

1 130 – 4 500 Hz

Frequency response

57 – 22400 Hz

Sensitivity 1W / 1m

89,5 dB

Nominal impedance

8 ohms

Minimal impedance

4 ohms

Power handling

40 W

Peak power

320 W

USE

In wall / In ceiling

DIMENSIONS

Dimensions

32 x 23 x 8,8 cm

Weight

2,5 kg
